Effortless comfort, Maximum Efficiency

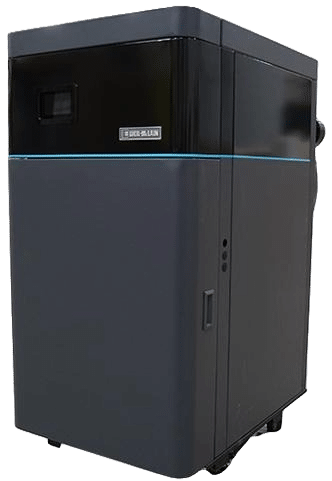

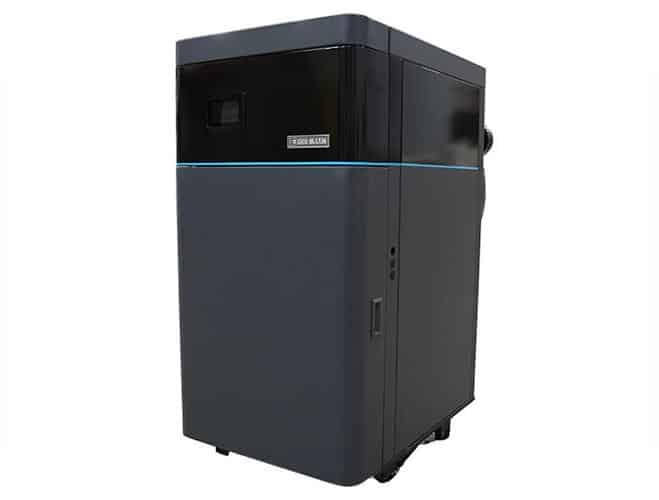

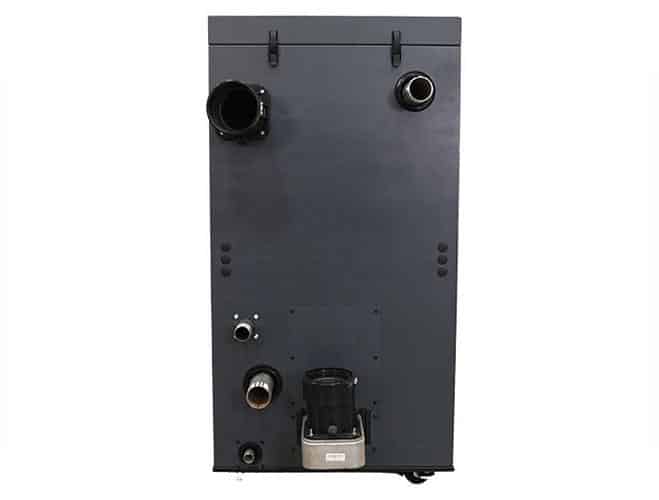

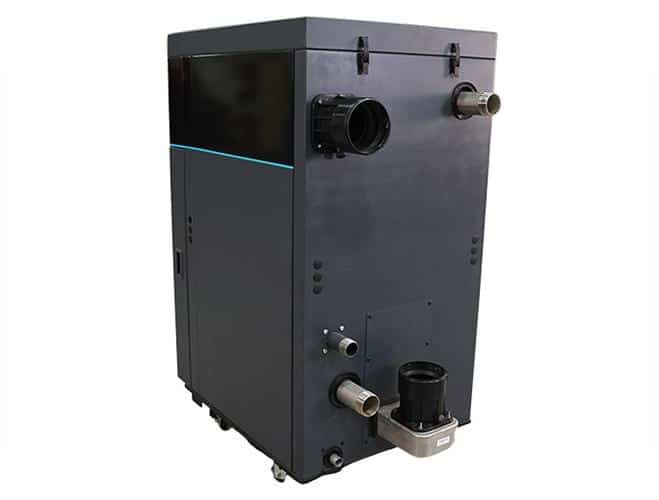

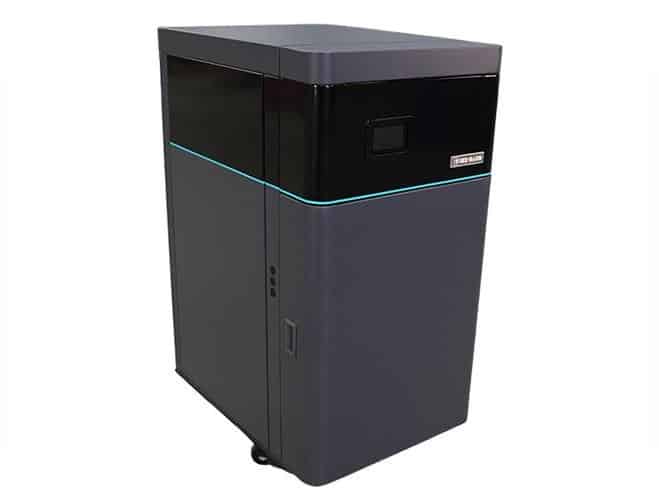

SVF Stainless Vertical Firetube (500–600 MBH)

The SVF boiler streamlines set-up and installation, saving time, labor and money. Guarding against wear and tear with its corrosion resistant and durable materials, Weil-McLain’s new Stainless Vertical Firetube boiler delivers energy efficiency and reliability. A leading-edge addition to our commercial boiler portfolio, it meets all standard bid specs for new construction.

Features

Used in 40% of global applications, aluminum design heat exchangers possess substantially higher heat transfer ability, resulting in smaller and lighter heating solutions
Automotive and industrial equipment industries have standardized on the use of aluminum design in response to years of reliable and long service life

Time-proven sectional design perfect for cast-iron section boiler upgrades to high efficiency
Wide, open waterways that are more forgiving of older boiler plant water systems

No rigging required with integrated roller casters and shipping container ramp
Boiler base capable of disassembly for tighter boiler room access application
Field-adjusable boiler front or side mount controller

“Door-fit” design with left and righ hand orientation to maximize boiler room floor space
Comprehensive CAT II / CAT IV venting certications
Variable/primary and primary/secondary compatible
Low pressure drops and minimum water flow rates boiler cascade redundancy for optimized boiler plant operation and reduced down times
Building Automation System integration via Modbus to BACnet and Lonworks

Proven Unity^TMController with thousands of boiler applications across the Evergreen, SlimFit and SVF product families (110-3000 MBH)
Composite condensate tray
Non-prorated 10-year heat exchanger warranty
2-year parts warranty

Solutions That Matter™

500 & 600 MBH model stainless steel, fire tube boilers for light commercial and large heating applications

Easier

With contractor-friendly design to include Integrated roller casters. Shipping ramp and 3-in-1 vent adapters for quick installation

Better

With market leading efficiency and turn-down ranges for better energy effciiency and lower operating costs

Smarter

With Unity™ 2.0 color touchscreen Nuro controls enabling enhanced diagnostics and trouble-shooting

Locate a contractor Locate a Distributor Product Comparison Tool

The Next Generation OF high efficiency Commercial boilers

Inquire about SVF

Technical Specs

MODEL	MAX INPUT (MBH)	GROSS OUTPUT (MBH)	THERMAL EFFICIENCY	MAX WORKING PRESSURE	TURN DOWN RATIO	SUPPLY / RETURN WATER CONNECTIONS	GAS CONNECTION SIZE	AIR INTAKE / EXHAUST VENT DIAMETER	LENGTH (IN.)	WIDTH (IN.)	HEIGHT (IN.)	APPROX. SHIPPING WEIGHT (LBS.)
SVF 500	500	490	98.00%	160	10:01	2″ NPT	1 1/4″ NPT	4″	42 3/16″	24 7/8″	49 13/16″	572
SVF 600	600	588	98.00%	160	12:01	2″ NPT	1 1/4″ NPT	4″	42 3/16″	24 7/8″	49 13/16″	572

Downloads

Product Manuals

SVF 500-600 User Manual SVF 500-600 Boiler Manual SVF 500-600 Boiler Advanced Manual

Sales Collateral

SVF 500-600 Engineering Tech Data Sheet SVF 500-600 Sales Flyer SVF 500-600 Sample Specification SVF 500-600 Submittal Sheet Hybrid Boiler System – Best of Both Worlds Maintenance Kit Flyer Typical Venting Applications Guide

Product Revit

SVF 500-600 Revit

Technical Documents

SVF 500-3000 | SlimFit 550-2000 Application Guide for Common Venting Commercial Accessory – Boiler Circulators Commercial Accessory – Alarm Buzzer Commercial Accessory – Isolation Valves Commercial Accessory – Minimum Water Flow Switch Commercial Accessory – Wireless Outdoor Temperature Sensor SVF 500-600 Seismic Documentation

Product Drawings

SVF 500-600 Technical Drawing

Product Supplements

Unity 2 Control Modbus Supplement

Warranty Information

SVF 500-600 Commercial Warranty SVF 500-600 Residential Warranty
