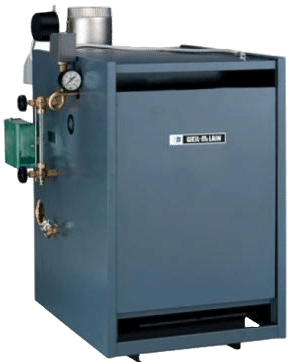

EG Series 6 Gas Boiler

  • EG residential gas fired boiler
  • Comes with automatic vent damper for higher efficiencies and reduced fuel consumption
  • Easy access to controls for convenient servicing
  • Configured for Natural Gas, intermittent electronic ignition only
  • A versatile gas cast iron boiler for water or steam applications
  • Cast iron heat exchanger
  • Up to 84% AFUE

Technical Data

Model CSA Input (MBH) Chimney Size Approx. Shipping Weight (Lbs.) DOE Heating Capacity (MBH) Water DOE Heating Capacity (MBH) Steam Net AHRI Ratings Water (MBH) Net AHRI Ratings Steam (MBH) Net AHRI Ratings Steam (Sq./Ft.) AFUE % Water AFUE % Steam
EG-30-* 75 84% 82% 64 62 56 47 196 5"I.D. x 20' 430
EG-35-* 100 84% 82% 85 82 74 62 258 5"I.D. x 20' 430
EG-40-* 125 84% 82% 106 103 92 77 321 6"I.D. x 20' 505
EG-45-* 150 84% 82% 127 124 110 93 388 6"I.D. x 20' 505
EG-50-* 175 84% 82% 148 145 129 109 454 7"I.D. x 20' 585
EG-55-* 200 84% 82% 169 166 147 125 521 7"I.D. x 20' 585
EG-65-* 238 84% 82% 201 198 175 149 621 8"I.D. x 20' 660
EG-75-* 282 84% 82% 237 234 206 176 733 8"I.D. x 20' 735
