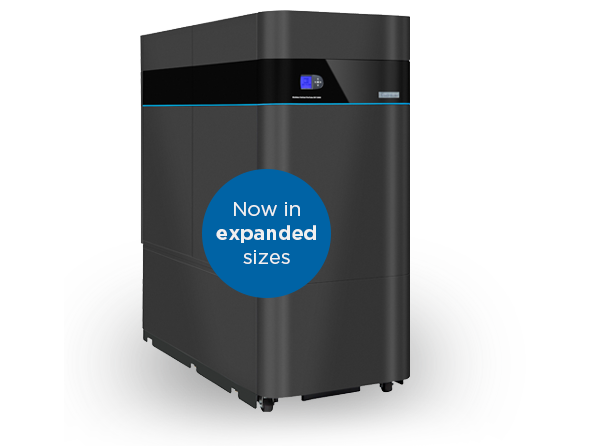

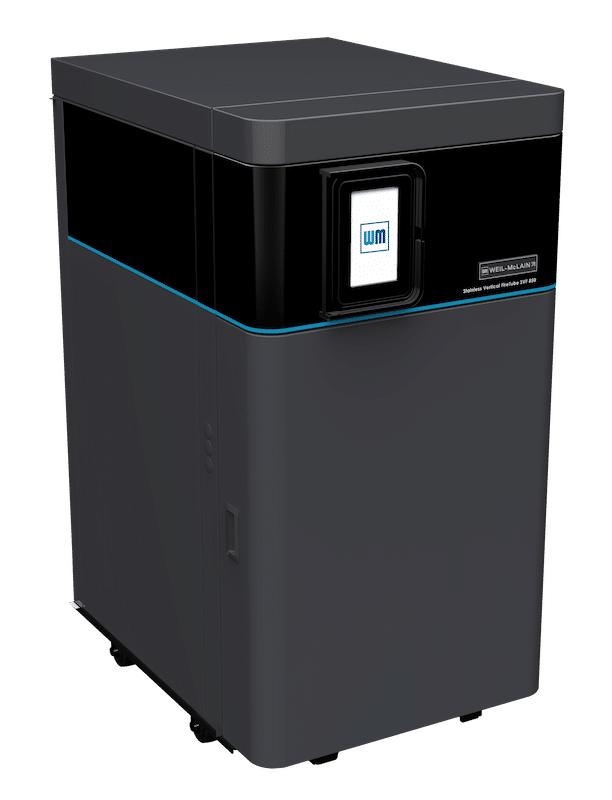

The Next Generation

OF high efficiency Commercial boilers
750-1100 1500-3000

Firetube performance, perfected

EASE OF INSTALLATION

The new SVF boiler streamlines set-up and installation, saving time, labor and money.

ADVANCED UNITY CONTROL

Combines advanced technology with intuitive, user-friendly design. Built-in wizard for easy set-up. Up to 8 boilers can be sequenced to meet a wide range of demands.

Corrosion-resistance

Durability is built into every Weil-McLain boiler. Anti-corrosion technology virtually guarantees longlasting, reliable heat exchanger performance.

Performance Specification Data

Model No. Thermal Effeciency Max Pressure (psi) Max Input (MBH) Gross Output (MBH) Net AHRI Rating (MBH) Turn Down Water Conn Gas Conn Air/Intake Vent Size Length Width Height Shipping Weight (lbs)
SVF 750 96.30% 160 785 756 657 5 : 1 2" flange 1 1/4" 6" 46.5" 31.5" 79.1" 1,565
SVF 1000 96.80% 160 1,000 968 842 4.4 : 1 3" flange 1 1/4" 6" 51.0" 31.5" 79.1" 1,875
SVF 1100 97.10% 160 1,134 1,101 957 5 : 1 3" flange 1 1/4" 6" 51.0" 35.4" 79.1" 1,875
SVF 1500 96.50% 160 1,500 1,448 1,259 7.5 : 1 3" flange 2" FNPT 8" 84" 35" 79" 2,550
SVF 2000 96.20% 160 1,999 1,923 1,672 10 : 1 3" flange 2" FNPT 8" 84" 35" 79" 2,550
SVF 2500 96.80% 160 2,499 2,419 2,104 8.3 : 1 3" flange 2" FNPT 10" 84" 35" 79" 2,850
SVF 3000 - 160 3,000 2,874 2,499 10 : 1 3" flange 2" FNPT 10" 84" 35" 79" 2,850
